Equipment for plasma cutting of metals of increased thickness on the reverse polarity

General description

The equipment for plasma cutting on the reverse polarity is used for manual, mechanized or automated (in the portal machine) cutting of stainless steel, ferrous and nonferrous metals (aluminum, copper, titanium and other alloys) a thickness of 5-200 mm using plasma arc DC (direct actions). Provides efficient cutting of metal sheet and tubing, round and complex-rolled products, various cast. The Equipment is designed for productions that require high speed (performance) and accuracy (quality) of the cutting, especially for increased thicknesses.



The process of plasma cutting thickness exceeding 100 mm plasma torches to reverse polarity

Steel products 160 mm after cutting

Plasmacutting torches with electrodes of special design of composite nano-structured materials based on copper, working on the reverse polarity current areused in the installations (system). As the plasma forming gas air and air + methane (propane), water vapor, oxygenare used, Inert and other gases.

In comparison with the installationsthat use air plasma cutting torches on the direct polarity with thermochemical cathode, with the same current the plasma cutting equipment on the reverse polarity provides the following benefits:

— Performance (speed) above the cut by 20-40%;

— The depth of cutting more than 2 — 3 times;

— Width of cut is less than the (10 — 15)%;

— Greater accuracy and lower surface roughness of the cut;

— Life of the torch on the reverse polarity to the replacement of the electrode is (4-10) shifts, instead of (0.5-1) for the thermo-chemical change of the cathode;

— Maintainability of the plasma torch, ease of replacement parts.

Types (brands) and technical characteristics of the installation for plasma cutting of metals on the reverse polarity

Nameofparameter

Type (brand) of installation- parameter values

PLAZER-CutRP-50

PLAZER-CutRP-100

PLAZER-CutRP-150

PLAZER-CutRP-200

Electric power, kW

10-50

50-100

100-150

150-200

Operating current, À

100-200

200-300

300-400

300-500

Arc operating voltage,V

160-240

240-300

320-500

320-500

Off-loadvoltage , V

350-450

400-500

480-550

500-600

Voltage three-phase AC mains frequency 50 Hz ,V

380±5%

380±5%

380±5%

380±5%

Extreme thickness of metal cut (carbon steel) at 380V, voltage, mm

50 (60)

100

150-170

180-200

Types of the plasma forming gas

Air,

air +methane (propane), water vapor, oxygen

Air,

air +methane (propane), water vapor, oxygen

Air,

air +methane (propane), water vapor, oxygen

Air,

air +methane (propane), water vapor, oxygen

Cooling of the plasma torch

water

water

water

water

Flow rate the plasma forming gas (air), g/s

1-1,3

1-1,5

1-2

1-2

Coolingwaterpressure, 105Pa

2-4

2-4

2-4

2-4

Coolingwaterflowrate, kg / s

0,1

0,1

0,2

0,2

Note:

1. Technical characteristics are subject to change upon request.

2. Installation PLAZER-PL Cut-RP-200 — work in progress:

Delivery set of the equipment

for cutting of metals on the reverse polarity:

No

Completeness

Quantity, pc

PLAZER-CutRP-50

PLAZER-CutRP-100

PLAZER-CutRP-150

PLAZER-CutRP-200

1

Plasma torch for manual cutting

1

-

-

-

2

Ðlasma torch for machine (automatic) cutting

1

1

1

1

3

Power supply

1

1

1

1

4

Control panel

1

1

1

1

5

The set of spare parts

1

1

1

1

6

Overhead manipulator (robotized complex)

By the additional order — depending on the specifications, dimensions, products and production program

7

Passport

1

1

1


Ðåçêà (ñáîðêà)x.jpg

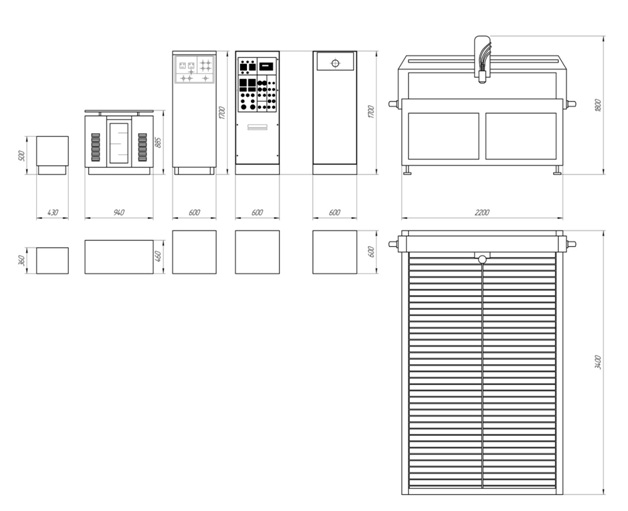

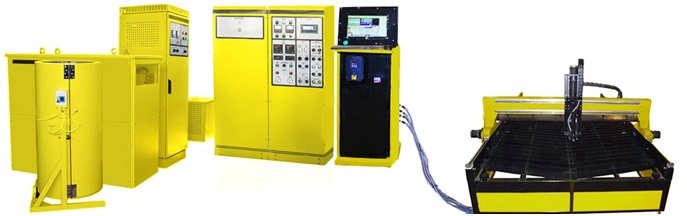

External view of the equipment for plasma cutting of metals of increased thickness on the reverse polarity (for the installation PLAZER-CutRP-150).).

The list of main units of the equipment for plasma cutting of metals on the reverse polarity

The description is an example configuration of a technological complex installation PLAZER-CutRP-150

TheControlsystemof plasmatron for metal cutting on the reverse polarity with integrated control module of plasmatron water cooling

. The control system of plasmatron for metal cutting on the reverse polarity should monitor preparedness of plasma equipment set, starting and stopping the processes of plasma cutting on the reverse polarity, visual supervision and regulation of technological parameters of plasmatron operations as well as supply of electric power, plasma-forming gases and cooling environment to the plasmatron.

The controlsystemofplasmatronconsistsofnextmodules:

  • gas-electric module of plasma-forming gas;
  • controlmoduleofplasmatronwatercooling;
  • electric arc module;
  • collector module (connection panel);
  • arc ignition module;
  • controller module with an option to transfer data to a stationary computer and to print.

All modules must be mounted in one cabinet.

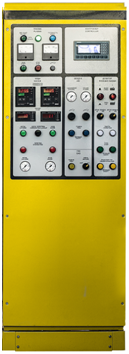

Externalviewofcontrolsystemofplasmatronformetalcuttingon thereversepolaritywithintegratedcontrolmoduleofplasmatronwatercooling

Gas-electricmoduleof plasma-forming gasmustprovidesupply, regulation and control of gaspressureand gasflowrate. On its front panel must be installed:

— pressure control gauges;

— gates (faucets) for airflow control;

— push-to-lock buttonstoengageelectromagneticvalvesofairsupply.

Controlmoduleofplasmatronwatercoolingprovidedsupply, regulationandcontroloverthewaterflowrate.

Electricarcmoduleprovidesplasmatronpowersupply, regulation and control over the current and arc voltage.

Collectormodule (connectionpanel) providesthesupplyofwater, gasandelectricity (powersupply) totheplasmatron.

×åðòåæ ØÓ Ïàíåëü íèæíÿÿ

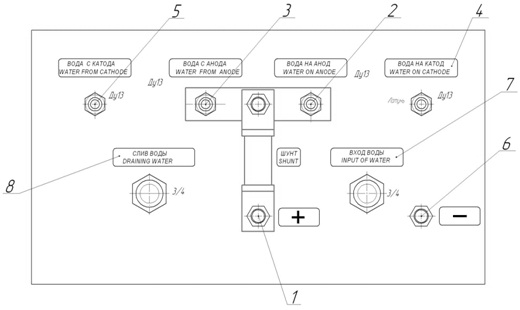

Externalviewofcollectormodule (connectionpanelofcontrolcabinet):

1 — cable "+" pluggingpoint; 2 — connecting point of cooling water feed hose on the anode; 3 — connecting point of cooling water drain hose from the anode; 4 — connecting point of cooling water feed hose on the nozzle; 5 — connecting point ofcoolingwaterdrainhosefromthenozzle; 6 — cable"-" pluggingpoint; 7 — cooling water uploading point; 8 — cooling water unloading point from the nozzle;

Plasma-forming gas preparation unit

Plasma-forming gaspreparationunitprovidespreparationof gas-airmixtureincertainproportionanditsfeedingas plasma-forming gastothecuttingplasmatron. Gas preparation unit is equipped with assembly units and devices for fuel gas (propane-butane) supply, regulation and control, and with plasma-forming gas mixer device. Rotameter is located at the front panel of gas preparation unit.

Ventilation of preparation unit of plasma-forming gas is performed in a natural way. Inside the unit, there must be set assembly units and devices for regulation and control of fuel gas (propane-butane), connected by pipeline valve. The mixer is used for creation of uniform gas-air mixture. Gas flow rate must be controlled by the rotameter and supported automatically depending on the flow rate of plasma-forming air in a way that specified proportion remained unchanged. Only in case of electrical arc ignition and the presence of control pressure of plasma-forming air, fuel gas is supplied. Plasma-forming mixture is preparing in a mixer of gas preparation unit, which receives air from the control cabinet. Appropriate proportion is prepared with propane-butane flow regulator, which receives air control pressure from control cabinet.

Specialized power supply system.

Specializedpowersupplysystem of the universal technological complexformetalsplasmacuttingonthereversepolarityincludes:

1

Control console with electric drive and automatic circuit-breaker , power magnetic starter, power thyristors unit, units for control, regulation and protection, panel with auxiliary centers (of pilot arc), protecting and control equipment;

1 pc.

2

Power transformer

1 pc.

3

Reactor (saturated-core reactor); specialized reactor

1 pc.

4

Arc ignition unit (spark injector)

1 pc.

Thesystemprovidespowersupplyofcutting plasmatronofconstantcurrentwithpowerconsumption200 kW (depending on the installation (system) type).

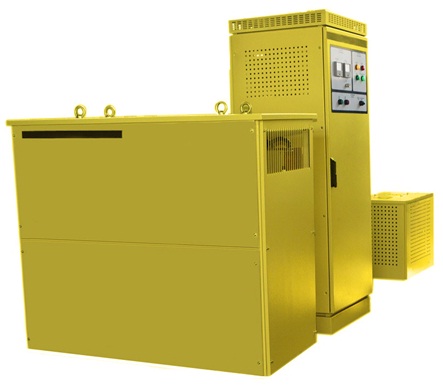

Externalviewofthe supplied specialized power supply system of the universal technological complex for metals plasma cutting on the reverse polarity.

Thecontrolsystemof the cutting parameters with displaying on personal or industrial computer in real-time mode

Controlsystemofcutting process parameters with an option to transfer data to a stationary or industrial computer in real-time mode must provide measurement and fixation of next data:

Energy parameters:

— arccurrent I [ A ]

— arcvoltage U [ V ]

— netpower (usefulpower), W [ kW ]

Other controlled parameters:.

Plasma-forming parameters:

— plasma-formingairpressure Pair [ kPa ]

— plasma-forming airflowrate Gair [ n.m3 perhour ]

— gaspressurePgas [ kPa ]

— gasflowrateGgas [ n.m3 perhour ]

— mixtureflowrate Gmix [ n.m3 perhour ]

Cooling parameters of cutting plasmatron:

— watertemperatureatcathode'sinput T1.n [ ?Ñ ]

— watertemperatureatcathode'soutput T2.n [ ?C ]

— water temperature at anode's input T1.à [ ?C ]

— water temperature at anode's output Ò2.à [ ?C ]

— cathode water flow rate Gw.n [ liters per minute ]

— anode water flow rate Gw.à [ liters per minute ]

Four-axis manipulator of the universal technological complex for metals plasma cutting on the reverse polarity.

Four-axis manipulator include three-axis system (table) of bridge-beam type with additional fourth controlled rotation axis and provide transferring of cutting plasmatrons in the field X:Y:Z, providing accuracy of not less 0,05 mm on the stroke lengths 1000 mm with operating speeds up to 15 m/min, as well as plasma cutting of cylindrical parts and manipulator for plasma cutting of cylindrical parts.

Versions of the manipulator to the coordinates X: Y: Z:

— Length 2000-6000 mm;

— Width ?1000-2000 mm;

— Height 150-300 mm

Four-axis manipulator should include the system of metal surface monitoring for automatic maintenance of the distance from plasmatron up to the billet, that has an effect on cutting quality, power/angle curve of cut, probability of slag formation and cutting speed.

Four-axis manipulator design provide easy replacement of cutting plasmatrons of above stated sizes or other work tools if necessary, and the ability to calibrate the sensor of metal surface tracking.

Four-axis manipulator also should include the unit of plasmatron fixing with suitable for angular variation, and also a hose for connection to exhaust ventilation.

Thenumericalcontrolsystem for plasmatrons movement along four axis (coordinates)

For management of the overhead manipulator and movement of cutting plasmatron the numerical program control system with software is used and has following capabilities:

• controllability up to six axis;
• direct importing of files DXF, BMP, JPG and HPGL usingembeddedsoftwareLazyCam;
• threedimensionalgraphicalvisualization of the G-codes control program;
• creation of the G-codescontrolprograminthesoftwareLazyCamorinWizard ("Masters");
• capability of interface full reset;
• creation of customer M-codes and macros on the base of VB-scripts;
• spindle speed control;
• multilevel relay control;
• using of pulses hand generators (MPG);
• window for visual monitoring of the operating process;
• touch screens compatibility;
• full-screen interface.
